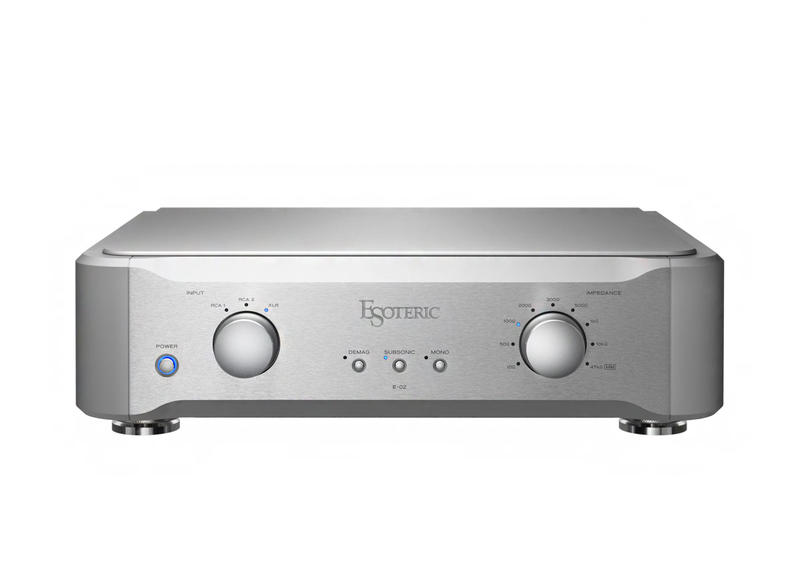

Esoteric E-02
- Kompletní specifikace
- Parametry
- Komentáře 0
- Esoteric E-02Není skladem233 990,00 Kč193 380,17 Kč bez DPH
Kompletní specifikace
| nputs | XLR connectors | 1 pair (MC) |
| RCA connectors | 2 pairs (MC/MM) | |
| Input impedance | MC: 10,50,100,200,300,500,1k,10kΩ MM: 47kΩ | |
| Outputs | XLR/ES-LINK Analog Connectors | 1 pair |
| RCA Connectors | 1 pair | |
| Output impedance | XLR: 20Ω RCA: 23.5Ω | |
| Audio characteristics | RIAA deviation (10 to 20kHz) | ±0.2dB |
| Total harmonic distortion (1kHz, MM, rated output) | 0.007% | |
| Rated output level | RCA: 2Vrms XLR: 4Vrms | |
| Gain | RCA: MM 40dB, MC 66dB XLR: MM 46dB, MC 72dB | |
| Input sensitivity (1kHz, rated output) | MM 20mV, MC 1mV | |
| Maximum input level (at 0.1% distortion) | MM 100mV, MC 4.8mV | |
| S/N ratio (Input short, rated output, IHF-A) | MM 100dB, MC 80dB | |
| Channel separation (MM, 10kHz, IHF-A) | <-96dB | |
| Sub-sonic filter | 17Hz -6dB/octave | |
| General | Power supply | AC 220-240V, 50/60Hz AC 120V, 60Hz AC 220V, 60Hz |
| External dimensions (W x H x D, including protrusions) | 445mm x 131mm x 377mm (17 5/8″ x 5 1/4″ x 14 1/4″) | |
| Weight | 12.5kg (27 9/16 lb) | |
| Included accessories | Power cord x 1 Felt pads x 3 Owner's manual x 1 Warranty card x 1 | |
| - This product is available in three different power supply variations as shown in the chart above. Make sure that the voltage shown on the rear panel matches the AC line voltage in your area. - The shape of the AC inlet and plug of the supplied power cord depends on the voltage rating and destination country. - Specifications and appearance are subject to change without notice. - Weight and dimensions are approximate. | ||
Parametry
VýrobceEsoteric
